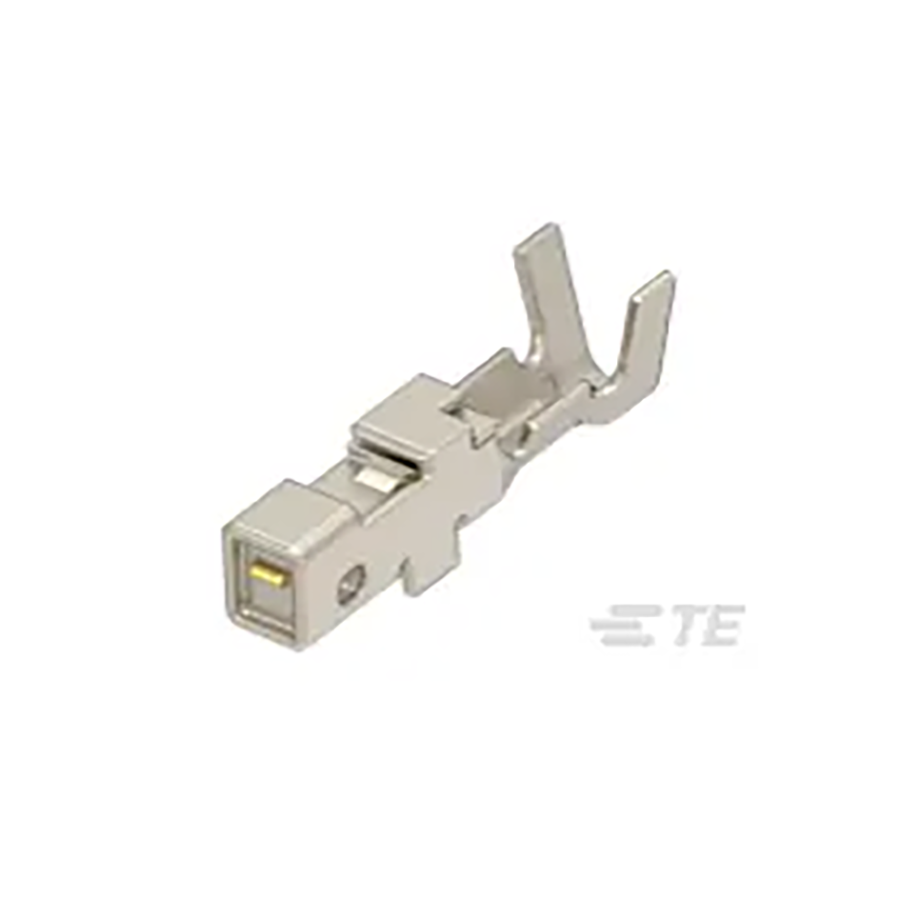

1827571-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1827571-2
Datasheet:
Description:
Headers and Wire Housings Cable Socket Number of Positions:1
| Parameter | Value |
|---|---|
| Length | 7.9 mm |
| Termination | Crimp |
| Max Operating Temperature | |
| Min Operating Temperature | |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | |
| Current Rating | 5 A |
| Orientation | Straight |
| Operating Supply Voltage | 125 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle (Female) |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| Connector Type | Socket |
| Wire/Cable Gauge | 28 AWG to 22 AWG |
| Number of Positions | 1 |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 22 AWG |
| Insulation Diameter | 1.9 mm |
| Contact Gender | Female |
| Mating Post Length | |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Termination Post Length | |
| Termination Style | Crimp |
| Contact Material(Contact Finish) | Copper Alloy |
Stock: 18540
Distributors
pcbx
pcbxUnit Price$0.89134
Ext.Price$0.89134
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.89134 | $0.89134 |
| 10 | $0.44567 | $4.45670 |
| 50 | $0.34282 | $17.14100 |
| 100 | $0.26371 | $26.37100 |
| 500 | $0.20285 | $101.42500 |
| 1000 | $0.15604 | $156.04000 |
| 3000 | $0.12003 | $360.09000 |
| 5000 | $0.09233 | $461.65000 |
| 10000 | $0.08720 | $872.00000 |
